5 Port UFH Underfloor Heating Manifold Complete Set 16mm Eurocone, Ball Valves
£106.00
Skip to product information

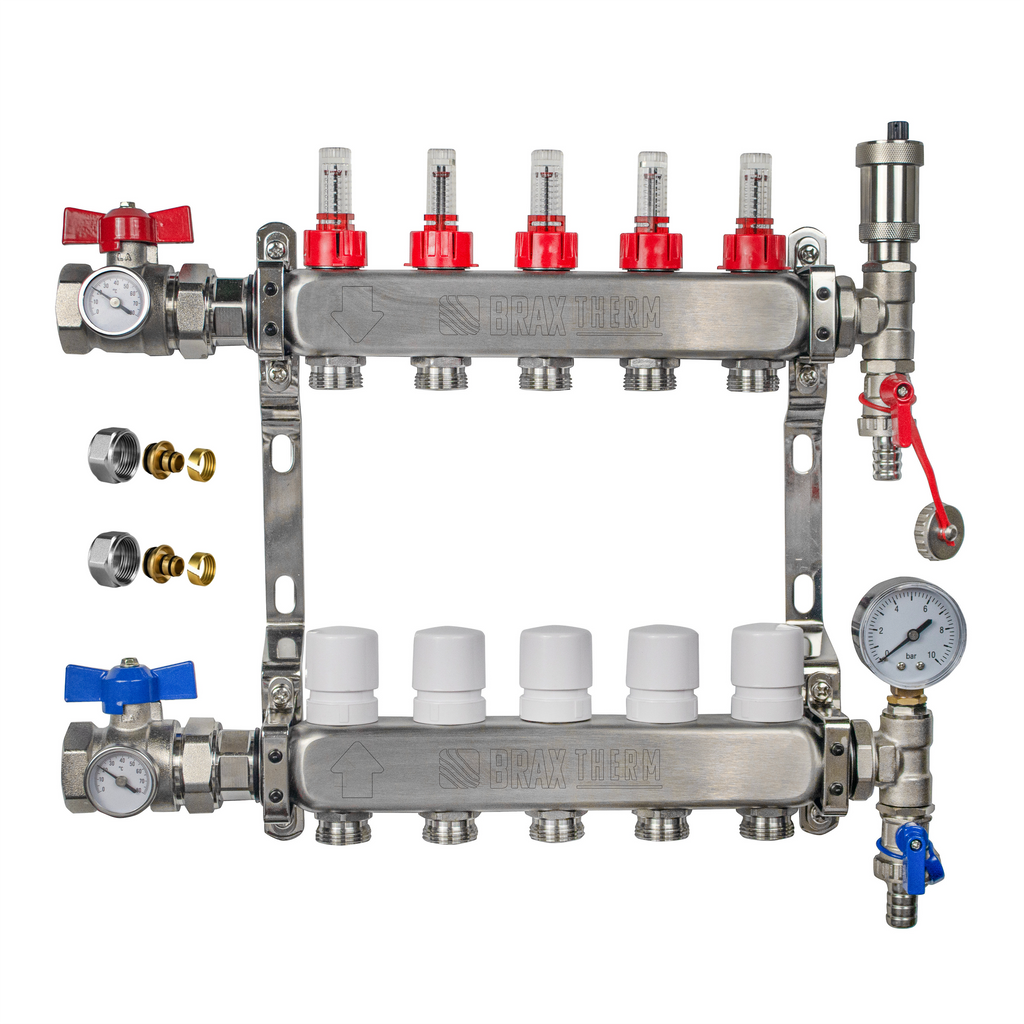

5 Port UFH Underfloor Heating Manifold Complete Set 16mm Eurocone, Ball Valves
£106.00
Installer-grade stainless steel underfloor heating manifold designed for reliable zone control and accurate circuit balancing. Features integrated flow meters and actuator-ready return valves to manage 5 heating circuits. Supplied as a complete kit for fast and professional installation.
Key Features:
- Stainless steel manifold – corrosion resistant and durable
- High-quality flow meters for accurate circuit balancing
- Reversible orientation – left or right-hand primary supply
- Mounting brackets included – standard 210mm vertical spacing
- Factory pressure tested for leak-free performance
- Made in the EU
Technical Specifications:
- Number of ports: 5 circuits
- Circuit connections: 3/4" Eurocone (16mm adapters included)
- Actuator thread: M30 x 1.5mm
- Bracket spacing: 210mm
- Material: Stainless steel
- Application: Underfloor heating (UFH) zone distribution and balancing
Dimensions: Please refer to the CAD/dimensions image in the product gallery for exact measurements for the selected model.
What’s Included (Complete Kit):
- 5 port manifold set (flow and return bars), pre-mounted on solid mounting brackets
- 16mm Eurocone adapters
- Isolation ball valves with temperature gauge
- Automatic air vent
