Flow Meter for Underfloor Heating Manifold 0-5 L/min | UFH Flow Rate Regulator | Replacement Part 1/2/5 Pack | Braxtherm

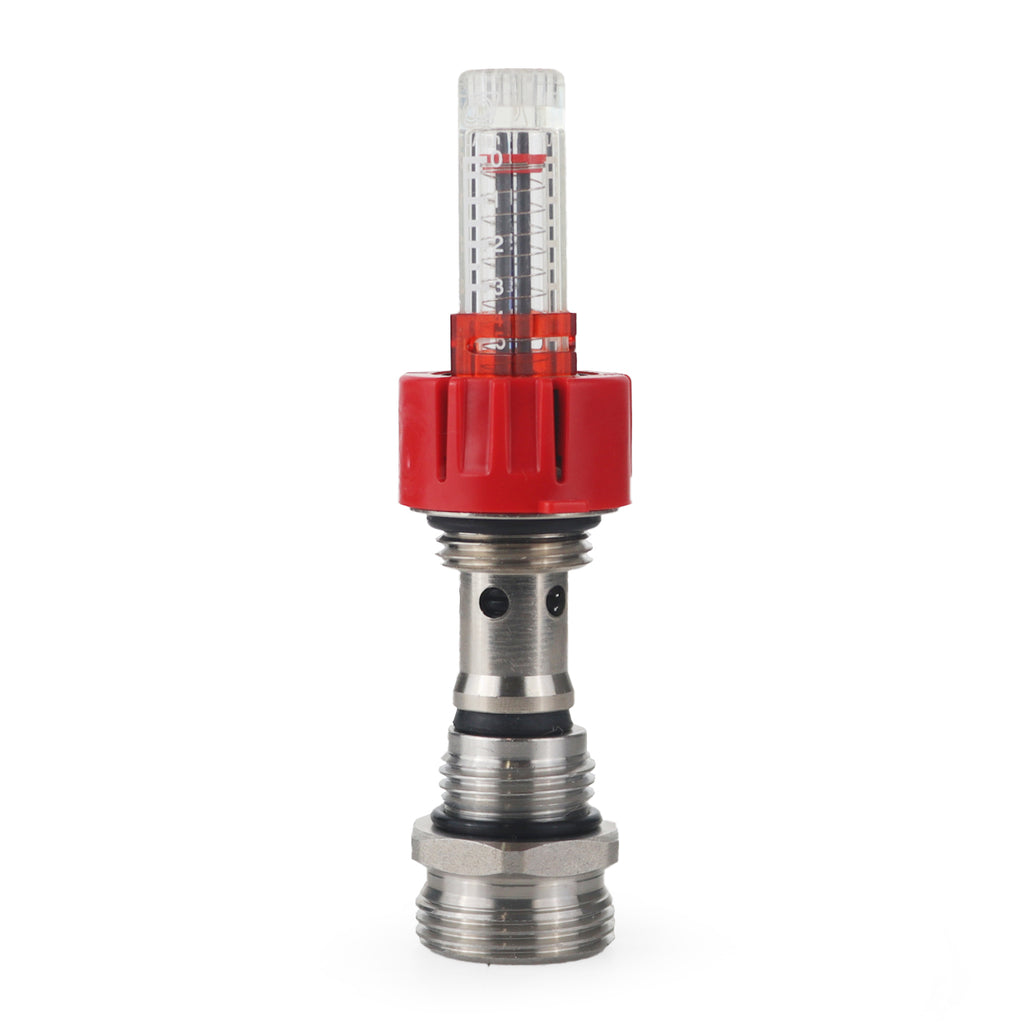

Replacement underfloor heating manifold flow meter designed for accurate flow monitoring and circuit balancing in water-based UFH systems. With a clear 0–5 L/min scale and standard 1/2" threaded connection, it provides a practical replacement for damaged or worn manifold flow meters.

The flow meter allows individual heating circuits to be monitored and adjusted, helping maintain balanced water distribution and consistent heat output throughout the underfloor heating system. Manufactured from durable brass and impact-resistant plastic, it is suitable for water and glycol solutions and designed for reliable long-term use.

Key Features:

• Replacement flow meter for underfloor heating manifolds
• Standard 1/2" threaded connection
• Clear 0–5 L/min flow range for accurate circuit balancing
• Easy-to-read scale for quick visual monitoring
• Durable brass and impact-resistant plastic construction
• Suitable for water and glycol solutions up to 50%
• Maximum operating temperature: 60°C
• Maximum pressure: 6 bar
• Compact design for installation within UFH manifold cabinets

Technical Specifications:

• Connection: 1/2" thread
• Flow range: 0–5 L/min
• Maximum temperature: 60°C
• Maximum pressure: 6 bar
• Material: Brass and high-quality plastic
• Media: Water / glycol solution (max. 50%)
• Application: Underfloor heating manifold flow monitoring and circuit balancing

Compatibility:

Designed for UFH manifolds using a compatible 1/2" flow meter connection. Please check the thread size and dimensions of your existing flow meter before ordering, as manifold specifications can vary between manufacturers.
