Underfloor Heating PEX Pipe 16mm x 2.0mm - UFH Pipe Coils 100 / 200 m

Braxtherm Professional Series 16mm x 2.0mm underfloor heating PEX pipe, designed for use in water-based underfloor heating systems. Supplied in coil format for easy installation across residential and commercial projects.

Compatible with standard 16mm Eurocone manifold connections and all standard UFH manifolds and Eurocone fittings.

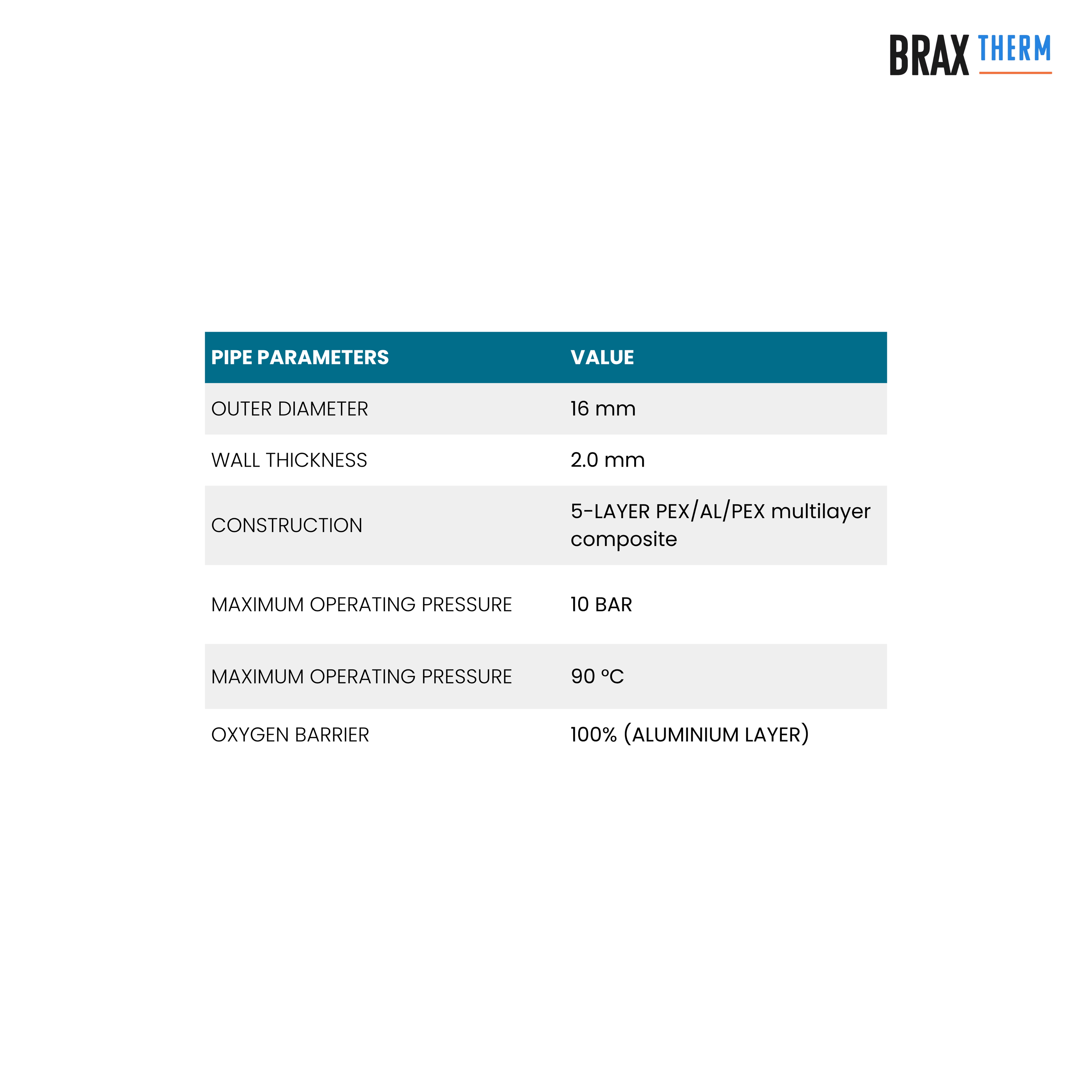

Key Specifications:

• Outer diameter: 16mm
• Wall thickness: 2.0mm

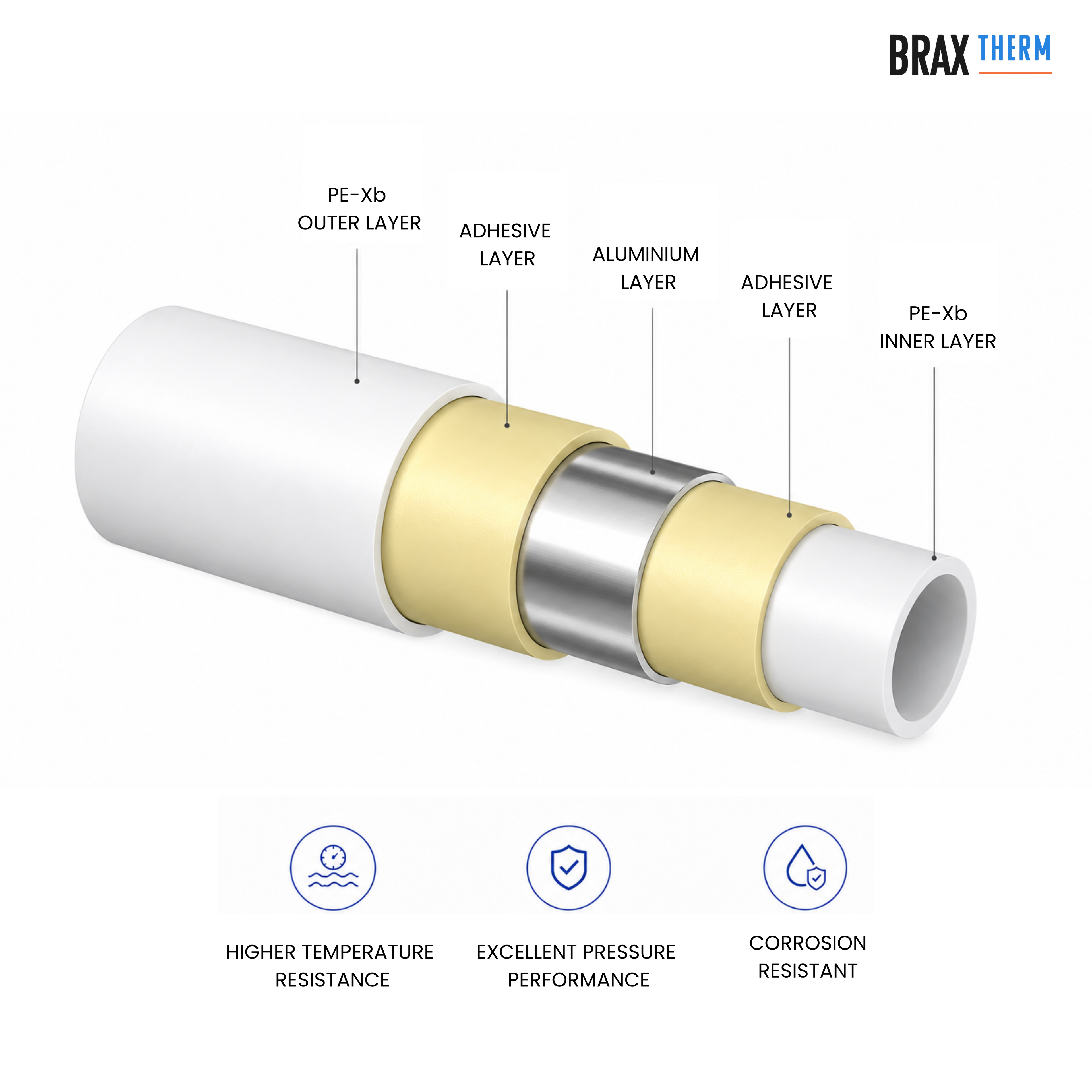

• Construction: 5-layer PEX/AL/PEX multilayer composite
• Max operating pressure: 10 bar
• Max operating temperature: 90°C
• Oxygen barrier: 100% (aluminium layer) - protects system components from corrosion

Key features:

• 16mm x 2.0mm dimensions, compatible with all standard UFH manifolds and Eurocone fittings

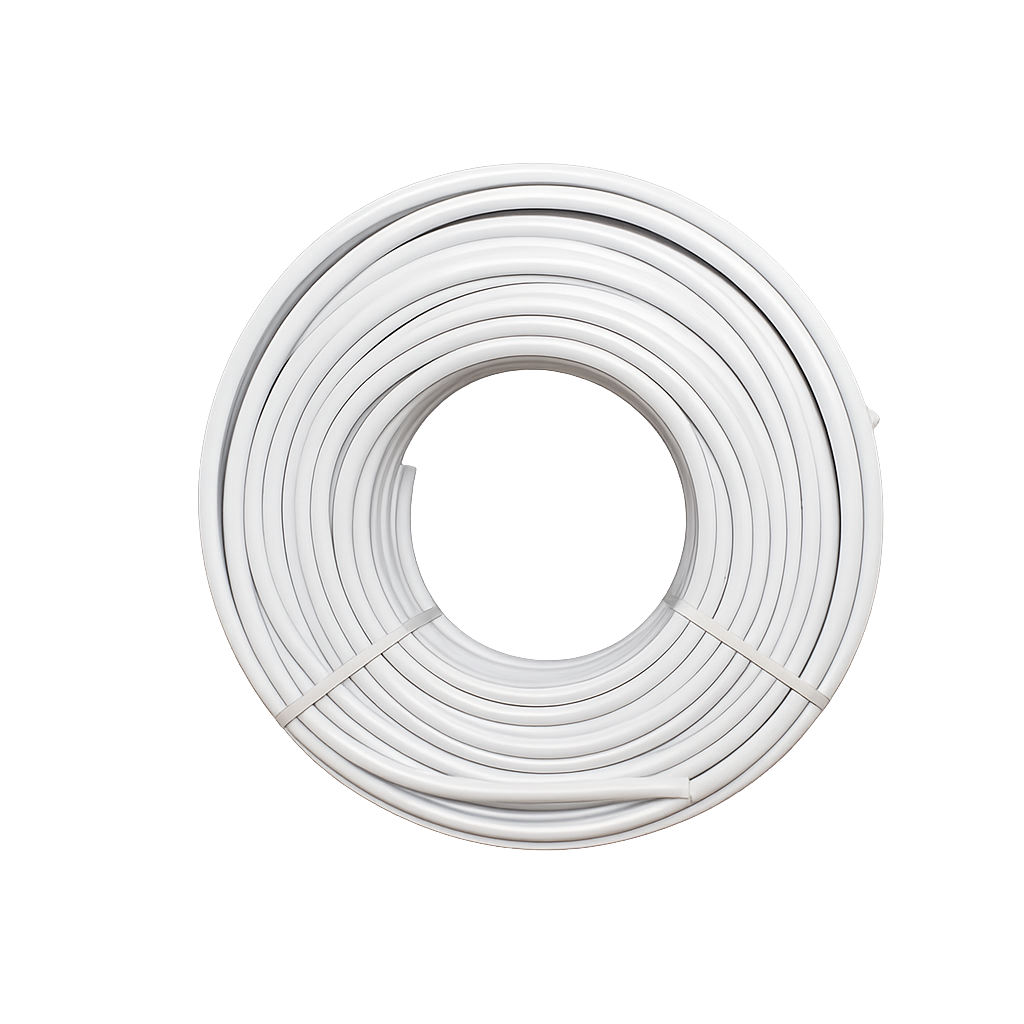

• Available in 100m and 200m coils to suit projects of all sizes

• Designed for water-based underfloor heating systems
• Free Express Delivery

Available coil sizes:

• 100m coil — ideal for smaller rooms or single-zone systems
• 200m coil — suited to larger areas or multi-room installations

For guidance on how much pipe you need, refer to your system design or consult your heating installer. As a general guide, pipe is typically laid at 150–200mm spacing.
